The TF-12x2A is a THREE-way line array box, it has a wide bandwidth operating range of 80Hz - 18kHz. This series replaces the TA series with a new amplification and processing module using FIR filters.
The channels are now 600W each. The power supply voltage range is from 100 to 250 Vac, thanks to its PFC. Its new processing card ensures that channels will not reach clipping. The DSP has 2 Presets, with just the press of a button you can adjust the settings for a cluster of 4 or 8 boxes.

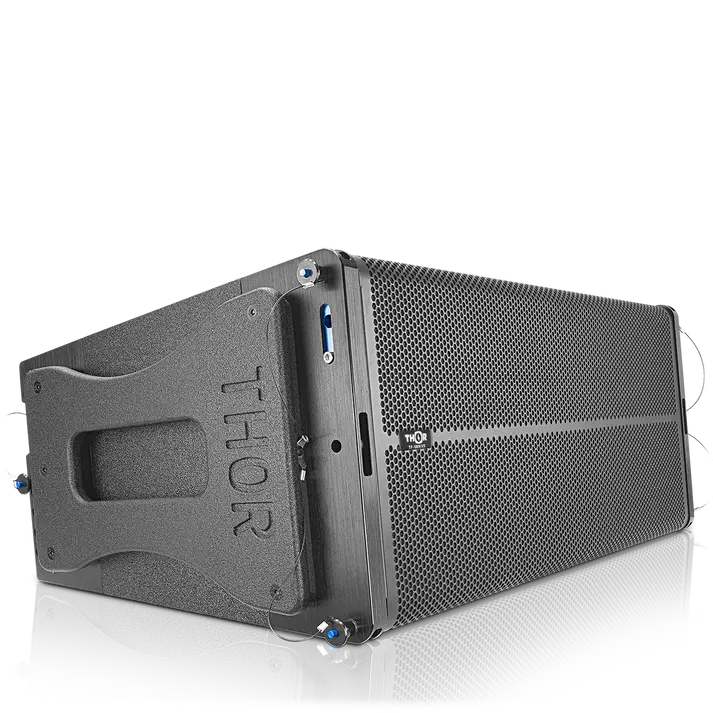

TF-12x2A
SKU: TF-12x2A
$3,200.00Price
Excluding Sales Tax
Design 3 ways line array full range system Frequency Range ± 10dB 80 Hz – 18 kHz Coverage Angle 120º Horizontal
8º VerticalPower MLF 350W AES, 700W Program
MF 350W AES, 700W Program
HF 180W AES, 360W ProgramDirectivity Index 6 (+3.5 / -2.5) 400 Hz -15 kHz Components 1x12" Mid Low 350W (Faital Pro)
1x12" Mid 350W (Faital Pro)
3x1.75" High Frecuency (Neo THOR)Filters FIR
Conections XLR 3 pin SPL@1M 138 dB Impedance LF 8Ω
MF 8Ω
HF 8ΩAmplifier Class D 1800W (3 channels of 600W each) Operation Range 100V – 250Volts, 60Hz Material Multilayer wood birch with PROFLEX covering Weight (Product) 54 kg, 119 lb Weight (Shipping) 148 kg, 326 lb Size (Product) 100 x 47 x 35 cm Size (Shipping) 105 x 60 x 98 cm Warranty 1 Year
